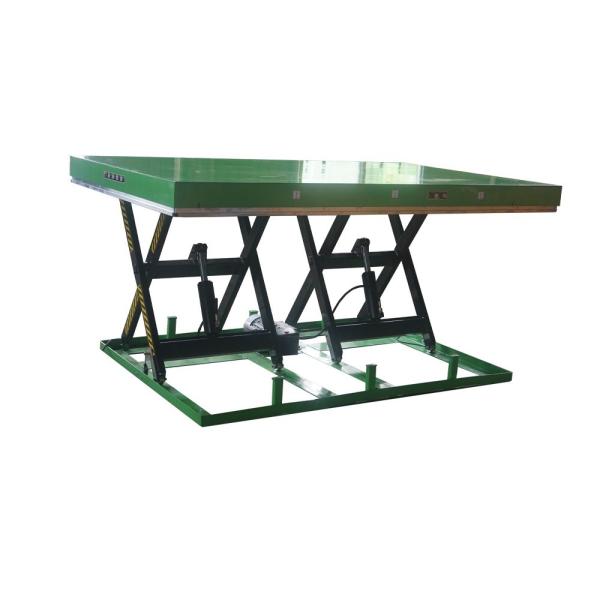

Double Horizontal Heavy Duty Scissor Lift Platform 4 Ton Min / Max Height 205 / 1000mm

Brand Name : JS

Model Number : HW4000DL

Certification : CE,SGS

Place of Origin : China

MOQ : 10 set

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 2000 sets per month

Packaging Details : Carton package and Pallet package

Lift drive / actuation : Electric Motor

Warranty : 12 months

Lift mechanism : Scissor Lift

After-sales service provided : Video technical support

Weight : 360kg

Min/Max Height : 205/1000mm

Color : Green

Rated loading capacity : 4000kg

Product name : Heavy Duty Scissors Lift Table

Feature : Easy Operation Safety Convenience

Material : High strength steel

Keywords : Double Horizontal Scissor lift tables

Product Name : Double scissor lift platform

Contact Now

China Factory Professional Double Horizontal Scissor Max Load Capacity 4ton Heavy Duty Scissor Lift Tables

Horizontal Double Scissor Lift Tables

Easily lift loads with our electric-hydraulic lift tables - perfect for handling or positioning loads at a convenient working height. This model could add High quality PVC corrugated skirt

Double pistion with double scissor could be equipped with Ultra plaform to suitable for desire application.

Copper connector keep the long life in quality and improve all the quality level for lift tables.

Model	Unit	HD2000L	HD4000L	HD8000L
Rated Lifting Capacity	Kg	2000	4000	8000
Platform Size	mm	2500x820	2500x850	3000x1200
Base Size	mm	2460x640	2450x785	2500x900
Min/Max Height	mm	205/1000	230/1000	300/1050
Elevating Time	s	26-36	36-46	40-50
Power Parameters		380V/50Hz	380V/50Hz	380V/50Hz
N.W.	Kg	265	360	560

4000kgs Heavy Duty Double Horizontal Scissor Lift Tables

Double Horizontal Heavy Duty Scissor Lift Platform 4 Ton Min / Max Height 205 / 1000mm

Compact steel frame

Standard steel frame with standard thickness to keep steel frame stability.

Ultra Platform are easy to operate anywhere.With Customizable application.

Lift tables; Double scissor lift tables, Heavy duty horizontal Scissor Lift tables

Assemble and workshop

Double Horizontal Heavy Duty Scissor Lift Platform 4 Ton Min / Max Height 205 / 1000mm

Scan the QR code to contact us for quick reply for the double scissor lift tables
